## Friday, 12 September 2014

### WinDbg Commands and Extensions - SwishDbgExt Library

The SwishDbgExt library contains a number of interesting extensions which are imperative for deep debugging results. The SwishDbgExt library was written by Matt Suiche.

You must also omit the exclamation mark (!) from the extension name, otherwise the !help extension will not work.

The available extensions from the DLL can be found by using the

I will provide a quick overview for the extensions which can be used with SwishDbgExt.

The

IRP Hooking involves a hook within the array stored within the DRIVER_OBJECT structure, this array or table of IRP_MJ_ functions is hooked and the code responsible for the IRP is redirected to malicious code. Please note hooking is used for legitimate processes such as debugging and patch releases.

The

The

The

I wouldn't consider the

**Note:**If you wish to use the ProcDumpExt DLL for WinDbg, and also view the help information for the extensions provided in SwishDbgExt, then you'll need to unload ProcDumpExt first since ProcDumpExt will overload the*!help*extension with it's own version. You can simply load ProcDumpExt again afterwards. Alternatively, if you do not wish to unload the ProcDumpExt DLL, then simply use the longhand method of*!SwishDbgExt.help <SwishDbgExt Extension>*.You must also omit the exclamation mark (!) from the extension name, otherwise the !help extension will not work.

**Note:**You can use the*.chain*command to check if you have the ProcDumpExt DLL loaded or not. The*.chain*command will dump all loaded DLLs for the dump file.The available extensions from the DLL can be found by using the

*!SwishDbgExt.help*extension without any extensions added.I will provide a quick overview for the extensions which can be used with SwishDbgExt.

**!ms_drivers:**The

*!ms_drivers*extension is basically the same as the*lm*or*lmnst*command. There are some additional parameters you can add to the*!ms_drivers*extension to spice up the command.
The

*!ms_drivers /scan*extension can be used to find drivers using IRP Hooking.IRP Hooking involves a hook within the array stored within the DRIVER_OBJECT structure, this array or table of IRP_MJ_ functions is hooked and the code responsible for the IRP is redirected to malicious code. Please note hooking is used for legitimate processes such as debugging and patch releases.

**!ms_gdt**The

*!ms_gdt*extension can be used to view the GDT and LDT within the GDT. The GDT is public for all processes, whereas, the LDT is designed to be private for a specific process.**!ms_ssdt**The

*!ms_ssdt*extension will dump the SSDT and if any functions have been patched or hooked. Remember that hooking the SSDT is used by legitimate programs, and most modern rootkits tend to do not use this method anymore.**!ms_idt**The

*!ms_idt*extension is the same as the traditional*!idt*extension but with the added feature of detecting hooks within the dump file.**!ms_timers**I wouldn't consider the

*!ms_timers*as a replacement for !timer, however, it is a great extension for being used to conjunction with the WinDbg*!timer*extension. The*!ms_timers*can detect hooking within the _KTIMER_TABLE.## Saturday, 30 August 2014

### Some Interesting Numbers - Kaprekar's Constant, Polygonal Numbers and Highly Composite Numbers

I thought I would wrote a small article on some numbers which I find interesting, I may expand upon this topic in the future, but for this article I'm going to restrict myself to three forms of number: Kaprekar's Constant, Polygonal Numbers and Highly Composite Numbers.

Kaprekar's Constant will always be produced after iterating through Kaprekar's Routine, when given an arbitrary 4 digit integer, providing that at least two of the digits are different otherwise the constant will not be produced.

For example, using 3524 from Wikipedia (since the number of steps is knowingly small), arrange the number in descending order and then ascending order. Subtract these two numbers, and then repeat the process until you reach 6174. You may add any leading 0's to maintain a four digit number.

5432 - 2345 = 3087

8730 - 0378 = 8532

8532 - 2358 = 6174

7641 - 1467 = 6174

Polygonal Numbers when arranged as dots will form a polygon like a triangle or square. The Polygonal Numbers usually have a simple formula associated with them.

The first Hexagonal numbers are given as follows:

The general formula for any s-sided polygonal number can be given by the following:

$$P(S,N) = \frac{n^2(s - 2) - n(s-4)}{2}$$

For any given s-sided polygonal number, whereby P(S,N) = X, then the nth term number for X can be found using the following formula:

$$n = \frac{\sqrt{8(s -2) x +(s-4)^2} + (s-4)}{2(s-2)}$$

Highly Composite Numbers are a infinite sequence of numbers with the property, that the number of divisors is greater than any smaller n (any smaller number).

The first Highly Composite Numbers (HCN) are as listed below:

1, 2, 4, 6, 12, 24, 36, 48,...

For example, the number of divisors for 24 is 8, and the all the numbers below 24, have a number of divisors which is not greater than 8 and therefore 24 is considered to be a Highly Composite Number.

There some interesting properties related to Highly Composite Numbers which can be found in the References section.

Highly Composite Number - Wikipedia

Highly Composite Number

Table of Divisors

6174 - Wikipedia

Polygonal Number

Polygonal Number - Wikipedia

**Kaprekar's Constant:****Kaprekar's Constant is a special constant discovered by the Indian Mathematician called D.R.Kaprekar. The constant has the value of 6174. The constant comes from a simple algorithm known as Kaprekar's Routine. The constant can be produced from at most 7 iterations.**

Kaprekar's Constant will always be produced after iterating through Kaprekar's Routine, when given an arbitrary 4 digit integer, providing that at least two of the digits are different otherwise the constant will not be produced.

For example, using 3524 from Wikipedia (since the number of steps is knowingly small), arrange the number in descending order and then ascending order. Subtract these two numbers, and then repeat the process until you reach 6174. You may add any leading 0's to maintain a four digit number.

5432 - 2345 = 3087

8730 - 0378 = 8532

8532 - 2358 = 6174

7641 - 1467 = 6174

**Polygonal Numbers:**Polygonal Numbers when arranged as dots will form a polygon like a triangle or square. The Polygonal Numbers usually have a simple formula associated with them.

The first Hexagonal numbers are given as follows:

The general formula for any s-sided polygonal number can be given by the following:

$$P(S,N) = \frac{n^2(s - 2) - n(s-4)}{2}$$

For any given s-sided polygonal number, whereby P(S,N) = X, then the nth term number for X can be found using the following formula:

$$n = \frac{\sqrt{8(s -2) x +(s-4)^2} + (s-4)}{2(s-2)}$$

**Highly Composite Numbers:**Highly Composite Numbers are a infinite sequence of numbers with the property, that the number of divisors is greater than any smaller n (any smaller number).

The first Highly Composite Numbers (HCN) are as listed below:

1, 2, 4, 6, 12, 24, 36, 48,...

For example, the number of divisors for 24 is 8, and the all the numbers below 24, have a number of divisors which is not greater than 8 and therefore 24 is considered to be a Highly Composite Number.

There some interesting properties related to Highly Composite Numbers which can be found in the References section.

**References:**Highly Composite Number - Wikipedia

Highly Composite Number

Table of Divisors

6174 - Wikipedia

Polygonal Number

Polygonal Number - Wikipedia

## Tuesday, 19 August 2014

### Chromatic Properties of House and House X Graphs

As with Bull Graphs, House Graphs are simple graphs (not the Graph Theoretic definition) which have been neglected. They may not be interesting or yield any important findings to professional research mathematicians, but I haven't been able to find a paper or website which lists or shows any of the House Graphs properly at all. My intention is simply to state and prove of these properties.

Please note I'm not a professional mathematician and I'm not even studying for a Mathematics degree (Computer Science), and therefore may make mistakes or misunderstandings.

There are two main variants of House Graphs, and in this article I will listing the Vertex Colouring and Edge Colouring properties of such graphs. The two graphs are the House Graph and the House-X Graph.

Please note I'm not a professional mathematician and I'm not even studying for a Mathematics degree (Computer Science), and therefore may make mistakes or misunderstandings.

There are two main variants of House Graphs, and in this article I will listing the Vertex Colouring and Edge Colouring properties of such graphs. The two graphs are the House Graph and the House-X Graph.

House Graph |

House-X Graph |

Both of the graphs are simple graphs, and the same number of vertices. In terms of the structure of the graph, the only difference between the graphs are the number of edges. The number edges for the House Graph is 6 and the number of edges for the House-X Graph is 8. The number of edges will be fundamental to the chromatic properties of these graphs.

**Chromatic Number:**

The Chromatic Number is defined to be the minimum vertex colouring of a graph G. $$\chi(G)$$ is the common notation for the chromatic number of a given graph called G. The minimum vertex colouring is the smallest number of k-colours needed to colour the vertices, so that no two adjacent vertices contain the same colour; no two vertices connected by a common edge have the same vertex colour.

The chromatic number of a House X Graph is 4, this is very obvious, because the chromatic number of a complete graph with n vertices is n. The House-X Graph contains a complete graph of 4 vertices, and the addition of a 'isolated' single vertex creates a chromatic number of 4.

The chromatic number of the House Graph is 3, for a one main reason, the 3-Complete Graph is a subgraph of the House Graph which leads to the fact at least three colours to required. This isn't really a rigorous proof as such, but by attempting to colour the graph with only 2 colours, the idea will become more apparent.

**Chromatic Index:**

The Chromatic Index of a graph is defined to be the minimum edge colouring of a graph G. The edge colouring of a graph, is when two or more edges incident to a common vertex do not share the same edge colour. Since the House-X Graph and the House Graph are both simple graphs, then Vizing's Theorem can be applied here to show the chromatic index of both graphs.

Vizing's Theorem states that the minimum number of colours needed to edge colour a graph is the maximum degree or the maximum degree with the addition of 1. The maximum degree of a graph is the largest degree of a vertex within the graph. The degree is the number of edges incident to that vertex.

The House Graph has a chromatic index of 3, and the House-X Graph has a chromatic index of 4. The chromatic index for the House Graph is mostly due to the 3-Complete Graph being present as a subgraph, and the fact that Complete Graphs on odd n vertices will have a chromatic index of n.

**Reference(s):**

## Saturday, 9 August 2014

### Windows Access Tokens - !token and _TOKEN

Windows needs to ensure that untrusted code and untrusted users aren't accessing important areas of the operating system, and creating problems which would ultimately lead to a vast number of BSODs.

Windows manages this through Access Tokens which are used to identify the security context of a process/thread and a user. Access Tokens take two main forms: a Primary access token and a Impersonation access token. The Access Token additionally has two important features which are integral to security validation: SIDs (Security Identifiers) and a Privilege Array which contains the privileges allowed for that object.

The token type can be found within a enumeration called TOKEN_TYPE.

The data structure can be found under the

The Token type can also be found using the

We can view the Privilege Array within WinDbg, by using the

As mentioned before, the SID is used to determine if a thread or process has access to an object, and the privilege array will determine what that process or thread is able to do with that object. For example, being able to read and write to a file object.

SIDs have a unique format, and each segment will provide some useful identity information. Each SID will be stored with a _SID data structure as shown below:

These fields can be found within a SID, for which I will demonstrate in a moment. Each SID will have a S prefix. If you know the address of a SID, then you can use the

The three numbers in yellow, and in preceding in chronological order, represent the use of the SID, the revision number and identifier authority. The blue represents the sub-authorities and the green represents the RID or relative identifier.

The SID use can be found within an enumeration called SID_NAME_USE. The 1 indicates that this is a User SID.

The sub-authorities belong to the identifier authority, and used for more unique identification. The identifier authority or issuing authority tends to be Windows.

The relative identifier is used to identify the SID in relation to the issuing authority. Each unique user or group will start at 1000, and for each new user or group, then this number be incremented by 1, therefore there is at least two users on this system. Administrators are typically given 500 and Guest accounts are given 501.

Primary and Impersonation Tokens have two subtypes: Restricted Tokens and Filtered Admin Token. A Restricted Token is derived from another access token with the following limitations:

I will conclude this article by describing some of the more interesting and helpful fields within the _TOKEN data structure.

SID Components (Windows)

Access Tokens (Windows)

Restricted Tokens (Windows)

Impersonation Levels (Windows)

Windows manages this through Access Tokens which are used to identify the security context of a process/thread and a user. Access Tokens take two main forms: a Primary access token and a Impersonation access token. The Access Token additionally has two important features which are integral to security validation: SIDs (Security Identifiers) and a Privilege Array which contains the privileges allowed for that object.

The token type can be found within a enumeration called TOKEN_TYPE.

The data structure can be found under the

**TokenType**field within the _TOKEN structure. The Primary type determines the security context of the process for the currently logged on user, and the Impersonation type allows a thread to temporarily use a different security context.The Token type can also be found using the

*!token*extension:We can view the Privilege Array within WinDbg, by using the

*!token*extension with the address of the access token for a given process, the Privilege Array can be seen below:As mentioned before, the SID is used to determine if a thread or process has access to an object, and the privilege array will determine what that process or thread is able to do with that object. For example, being able to read and write to a file object.

SIDs have a unique format, and each segment will provide some useful identity information. Each SID will be stored with a _SID data structure as shown below:

These fields can be found within a SID, for which I will demonstrate in a moment. Each SID will have a S prefix. If you know the address of a SID, then you can use the

*!sid*extension to translate the address into the appropriate SID.The three numbers in yellow, and in preceding in chronological order, represent the use of the SID, the revision number and identifier authority. The blue represents the sub-authorities and the green represents the RID or relative identifier.

The SID use can be found within an enumeration called SID_NAME_USE. The 1 indicates that this is a User SID.

The sub-authorities belong to the identifier authority, and used for more unique identification. The identifier authority or issuing authority tends to be Windows.

The relative identifier is used to identify the SID in relation to the issuing authority. Each unique user or group will start at 1000, and for each new user or group, then this number be incremented by 1, therefore there is at least two users on this system. Administrators are typically given 500 and Guest accounts are given 501.

Primary and Impersonation Tokens have two subtypes: Restricted Tokens and Filtered Admin Token. A Restricted Token is derived from another access token with the following limitations:

- Privileges can be removed from the privilege array.
- The SIDs in the token can have their access altered.

I will conclude this article by describing some of the more interesting and helpful fields within the _TOKEN data structure.

**TokenSource**- The _TOKEN_SOURCE structure provides a information pretaining to the soruce of the access token. This can be the RPC server, Session Manager or LAN Manager.**TokenID**,**ParentTokenID**and**AuthenticationId**- The Locally Unique Identifier (_LUID) is used to uniquely identify a access token from the many other potiental access tokens being used on the system. See the _TOKEN_CONTROL data structure for more information.**Privileges**- The _SEP_TOKEN_PRIVILEGES structure contains the array of privileges related to the access token.**TokenType**- The _TOKEN_TYPE shows if the access token is a primary or impersonation token.**ImpersonationLevel**- The _SECURITY_IMPERSONATION_LEVEL is an enumeration of impersonation levels for the impersonation token. There is four different impersonation levels.**TokenFlags**- This field contains any flags which have been set for the access token.**TokenInUse**- Shows if the access token is currently being used.**SidHash**,**RestrictedSidHash**- These two hashes for the SID have been added to prevent token stealing. These hashes are checked each time the token is used.**References:**SID Components (Windows)

Access Tokens (Windows)

Restricted Tokens (Windows)

Impersonation Levels (Windows)

## Thursday, 31 July 2014

### Windows Integrity Levels - Process Explorer and WinDbg

From Windows Vista onwards, Microsoft has placed a substantially greater focus on the security of the operating system, which is one of the areas most users will neglect and then later come to complain about. In this article I'm going to talk about Windows Integrity Levels, and how we can view this information in WinDbg and through some SysInternals Tools. In another article, I will going into more depth about access tokens and how they are used to increase system security.

These security measures were introduced since it was relatively easy to modify memory and remove any security identification, thus leads to code modification and injection being used to allow illegitimate access to important system data structures etc.

User-Mode processes often require the use of system services and system resources which reside within the Kernel-Mode. To stop any illegitimate access or any poor programming from creating havoc in Kernel-Mode, some security validation procedures have been introduced to Windows, these commonly are Integrity Levels and Access Tokens.

The Integrity Levels come in 5 different levels, with 4 being the highest and most privileged level.

If you haven't enabled the Integrity Level column in Process Explorer, then follow these simple steps:

Alternatively, we can view the Integrity Level of a process with WinDbg, and the viewing the _TOKEN data structure. I'm not sure on its effectiveness.

These security measures were introduced since it was relatively easy to modify memory and remove any security identification, thus leads to code modification and injection being used to allow illegitimate access to important system data structures etc.

User-Mode processes often require the use of system services and system resources which reside within the Kernel-Mode. To stop any illegitimate access or any poor programming from creating havoc in Kernel-Mode, some security validation procedures have been introduced to Windows, these commonly are Integrity Levels and Access Tokens.

The Integrity Levels come in 5 different levels, with 4 being the highest and most privileged level.

**Integrity Levels (Lowest to Highest):***Untrusted (0)*- Blocks most write access to a majority of objects*Low (1)*- Blocks most write access to registry keys and file objects*Medium (2)*- This is the default setting for most processes when UAC has been enabled on the system.*High (3)*- Most processes will have this setting if UAC is disabled and the currently logged on user is the administrator. Otherwise, administrative programs will have this setting with*System (4)*- This is a setting reserved for system level components.

**Viewing Integrity Levels (Process Explorer):**If you haven't enabled the Integrity Level column in Process Explorer, then follow these simple steps:

**Click View > Select Columns > Integrity Level > OK/Apply**Process Explorer |

**Viewing Integrity Levels (WinDbg):**Alternatively, we can view the Integrity Level of a process with WinDbg, and the viewing the _TOKEN data structure. I'm not sure on its effectiveness.

Using the Token Address with _TOKEN data structure, we can find the Integrity Level of the process.

## Saturday, 19 July 2014

### Discrete Geometry - Bin Packing Problem

This post is a little irrelevant to general contents of my blog, but I found this to be a interesting geometry problem and it does have some ties with Computational Geometry, which is form a of theoretical computer science. There is additionally some connection with Computational Complexity Theory too. The Bin Packing Problem isn't difficult to explain, and yet can be difficult to find a optimal solution.

With Discrete Mathematics, I personally find that the branches within this field are more accessible but the problems are difficult enough to be interesting and form a field of serious mathematical study. I'm only a amateur mathematician and a student, so if there are any problems then please highlight them in the comments section.

The Bin Packing Problem is an example of a optimization problem which has a surprisingly large number of applications, especially in logistics and data management. The Bin Packing Problem asks to minimize the number of bins needed to pack a certain number and given volume for a list of objects. These objects can vary in size, but the bin volumes will remain fixed. There are some programs which will give valid suggestions for the most optimal method, however, the problem is a NP- Hard Combinatorial class type.

The sum of the sizes of the items must be less than or equal to the total volume of the bins being used. The size of the items can never be greater than the total volume of the bins. If the volume of one bin is reached, then a new bin will need to be used. The problem looks to find a packing method which will reduce the number of bins needed to provide a optimal method.

The First-Fit Algorithm is the best algorithm which has been used for the bin packing problem. The First-Fit Algorithm is an example of a greedy approximation algorithm, in that the items will processed in any given order. The algorithm will place as many items as possible into the first bin, and then create a new bin if no other additional bins can be found. The process is then repeated for the rest of the items.

The First-Fit Algorithm has a approximation factor of 2 (APX). The approximation factor is used for NP-Hard problems, since it is very unlikely that a efficient algorithm will be produced to solve the problem directly, and therefore a P class algorithm can be developed in order to find a approximate answer. The approximation factor of 2, means that the algorithm will never use more than twice the number of least bins needed for the bin packing problem. For instance, if the number of bins needed was 2, then the algorithm will never use more than 4.

Bin Packing Problem

With Discrete Mathematics, I personally find that the branches within this field are more accessible but the problems are difficult enough to be interesting and form a field of serious mathematical study. I'm only a amateur mathematician and a student, so if there are any problems then please highlight them in the comments section.

**Bin Packing Problem:**The Bin Packing Problem is an example of a optimization problem which has a surprisingly large number of applications, especially in logistics and data management. The Bin Packing Problem asks to minimize the number of bins needed to pack a certain number and given volume for a list of objects. These objects can vary in size, but the bin volumes will remain fixed. There are some programs which will give valid suggestions for the most optimal method, however, the problem is a NP- Hard Combinatorial class type.

The sum of the sizes of the items must be less than or equal to the total volume of the bins being used. The size of the items can never be greater than the total volume of the bins. If the volume of one bin is reached, then a new bin will need to be used. The problem looks to find a packing method which will reduce the number of bins needed to provide a optimal method.

The First-Fit Algorithm is the best algorithm which has been used for the bin packing problem. The First-Fit Algorithm is an example of a greedy approximation algorithm, in that the items will processed in any given order. The algorithm will place as many items as possible into the first bin, and then create a new bin if no other additional bins can be found. The process is then repeated for the rest of the items.

The First-Fit Algorithm has a approximation factor of 2 (APX). The approximation factor is used for NP-Hard problems, since it is very unlikely that a efficient algorithm will be produced to solve the problem directly, and therefore a P class algorithm can be developed in order to find a approximate answer. The approximation factor of 2, means that the algorithm will never use more than twice the number of least bins needed for the bin packing problem. For instance, if the number of bins needed was 2, then the algorithm will never use more than 4.

**References:**Bin Packing Problem

## Saturday, 12 July 2014

### WinDbg Power Policy Extensions - !podev, !popolicy, !poreqlist, !pocaps, !poaction

The

The

The

The

The list of power IRPs will be shown under the

The

The

Debugger Commands (!poaction, !poreqlist) that make my life easier (part 2)

*!podev*,*!poreqlist*and*!poaction*aren't documented within WinDbg for some reason, but there is a person which has written about them thankfully. These extensions are a must for Stop 0x0A and debugging any issues related to power like Stop 0x9F.**!popolicy**The

*!popolicy*displays information related to the current power policy of the current user.**!pocaps**The

*!pocaps*extensions displays information in relation to the power capabilities of the system, this is ideal for checking if drivers are attempting to use a unsupported sleep state.**!poreqlist**The

*!poreqlist*extension will list all outstanding power IRPs from any driver which has called the PoRequestPowerIrp function. The function will create a Power IRP and then send it to the top of the device stack for a given device object.The list of power IRPs will be shown under the

*FieldOffset*field. The extension will provide the device object, driver object and the nature of the power IRP.**!poaction**The

*!poaction*extension will provide the current power action, and a list of devices which are currently being powered off or down. It also provides a list of completed IRPs.*!poaction*may require a Live Debugging session, but I'm not sure on this due to the lack of documentation.**!podev**The

*!podev***will provide power related information for a PnP device object.****References:**Debugger Commands (!poaction, !poreqlist) that make my life easier (part 2)

## Thursday, 3 July 2014

### Mathematics for Theorectical Computer Science

I thought I would create a list of Maths topics which were relevant for those who are wishing to study Computer Science. I've seen most people on online communities referring to topics which have very little relevance or completely pointless in relation to Computer Science. This list is based upon my experiences and a friend who studies Computer Science at University. I've listed the most popular Computer Science fields and their Maths topics below.

These are the topics which you will typically study in your first year, and therefore will have to do.

I'm not too sure about Graphics, but these are the subjects which do have some relevance.

Most algorithms are used to solve mathematical problems, rather than the algorithms you see in commercial programs.

**General Computer Science:**These are the topics which you will typically study in your first year, and therefore will have to do.

- Graph Theory
- Linear Algebra (Matrices and Vectors)
- Calculus I and maybe some Calculus II
- Analytical Geometry
- Set Theory
- Big O Notation
- Radicals, Logarithms and Polynomials
- Logic

**Computer Graphics:**I'm not too sure about Graphics, but these are the subjects which do have some relevance.

- Fractal Geometry
- Linear Algebra
- Analytical Geometry
- Differentiable Geometry
- Hyperbolic Geometry
- Differential Equations
- Functional Analysis

**Information Theory:**- Differential Equations
- Real and Complex Analysis - Fourier Series
- Calculus II and Calculus III - Taylor Series
- Probability Theory

**Algorithms and Data Structures:**Most algorithms are used to solve mathematical problems, rather than the algorithms you see in commercial programs.

- Graph Theory
- Number Theory
- Combinatorics
- Probability Theory
- Big O Notation
- Set Theory

**Cryptography and Computational Number Theory:**- Number Theory

**Computability Theory, Computational Complexity Theory and Automata Theory:**- Set Theory
- Calculus I
- Recursion
- Proof Writing Techniques
- Number Theory
- Big O Notation
- Probability Theory

### WinDbg Extensions - !tz and !tzinfo

When I was writing up my WinDbg cheat sheet, I managed to stumble upon the

The

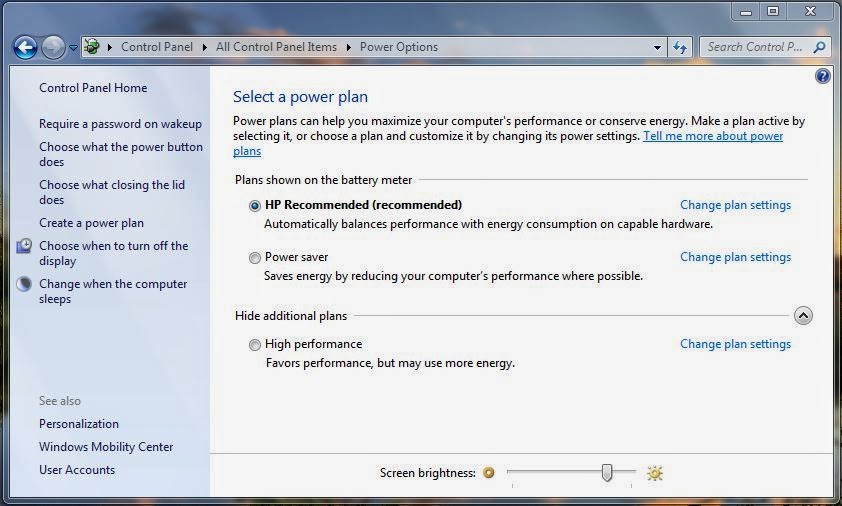

By changing the power consumption, the Active and Passive Cooling policies will be changed. I will explain the difference between Active and Passive cooling later.

The Thermal Management mostly uses a component called the OSPM (Operating System Directed Configuration and Power Management) to manage different cooling policies and check the thermal zones.

The OSPM is used to remove any device management responsibilities from the legacy devices, and therefore made thermal management more robust.

The OSPM creates logical regions called Thermal Zones. Thermal Zones are a key component within Thermal Management. The entire motherboard is one thermal zone, and is usually subdivided further into smaller thermal zones to make management more efficient. A cooling policy is set for each individual device with a thermal zone, and therefore each thermal zone will have multiple cooling policies and cooling resources (e.g. fans). An example of a thermal zone is below:

We can find the Thermal Zones on a system using the

The most useful part of the

These trip point temperatures correspond to the cooling policies implemented when that threshold is reached. Each device within a thermal zone will have its own threshold. The two main cooling modes are Active Cooling and Passive Cooling.

There is also a Critical temperature threshold, whereby if any thermal zone breaches this threshold, then the entire system will shut down. The thresholds are managed by objects called Thermal Objects.

The _TMP object is the current temperature of a thermal zone, and is compared to the _HOT, _CRT, PSV and _AC0/_AC1 thermal objects in order to implement the different cooling policies. The thermal object thresholds can be seen in the diagram below:

If the _TMP object value reaches the _CRT (Critical Temperature Threshold), the entire system will shut down. If the _TMP reaches the _HOT value, then the system will be placed into the S4 sleep state (Hibernation) if this mode is supported.

If the _TMP object reaches the _AC0/_AC1 (Active Cooling) then the Active Cooling policy will be implemented; there is two versions which adjust the fan speed. If the _TMP object reaches the _PSV (Passive Cooling) then the Passive Cooling policy is used. The Thermal Events are notified to the OSPM by Thermal Change Notifications.

We can check which power states are supported by using the

The power states are stored within an enumeration called _SYSTEM_POWER_STATE.

Thermal Management

*!tz*and*!tzinfo*extensions in the WinDbg Help documentation. The extensions seem to be solemnly documented directly by Microsoft, but using the ACPI documentation is easily to understand what most of the fields mean.The

*!tz*and*!tzinfo*gather information from the ACPI subsystem about the currently allocated thermal zones and the cooling policies being implemented. On Windows, you can manipulate the cooling policies slightly by changing your Power Settings.Power Settings - Windows 7 |

By changing the power consumption, the Active and Passive Cooling policies will be changed. I will explain the difference between Active and Passive cooling later.

The Thermal Management mostly uses a component called the OSPM (Operating System Directed Configuration and Power Management) to manage different cooling policies and check the thermal zones.

The OSPM is used to remove any device management responsibilities from the legacy devices, and therefore made thermal management more robust.

The OSPM creates logical regions called Thermal Zones. Thermal Zones are a key component within Thermal Management. The entire motherboard is one thermal zone, and is usually subdivided further into smaller thermal zones to make management more efficient. A cooling policy is set for each individual device with a thermal zone, and therefore each thermal zone will have multiple cooling policies and cooling resources (e.g. fans). An example of a thermal zone is below:

We can find the Thermal Zones on a system using the

*!tz*extension in WinDbg.The most useful part of the

*!tz*output is the Thermal Info Address which we can use with the*!tzinfo*extension to give the trip point temperatures of the thermal zone(s).These trip point temperatures correspond to the cooling policies implemented when that threshold is reached. Each device within a thermal zone will have its own threshold. The two main cooling modes are Active Cooling and Passive Cooling.

**Passive Cooling**- The operating system will decrease the power consumption of all devices, in order to reduce the temperature of the system, however, the cost is a reduction in system performance.**Active Cooling**- The operating system will increase the power consumption of cooling resources such as fans, to decrease the temperature of the system. Active Cooling has better system performance, but with laptops it will reduce the battery life much faster than usual.There is also a Critical temperature threshold, whereby if any thermal zone breaches this threshold, then the entire system will shut down. The thresholds are managed by objects called Thermal Objects.

The _TMP object is the current temperature of a thermal zone, and is compared to the _HOT, _CRT, PSV and _AC0/_AC1 thermal objects in order to implement the different cooling policies. The thermal object thresholds can be seen in the diagram below:

If the _TMP object value reaches the _CRT (Critical Temperature Threshold), the entire system will shut down. If the _TMP reaches the _HOT value, then the system will be placed into the S4 sleep state (Hibernation) if this mode is supported.

If the _TMP object reaches the _AC0/_AC1 (Active Cooling) then the Active Cooling policy will be implemented; there is two versions which adjust the fan speed. If the _TMP object reaches the _PSV (Passive Cooling) then the Passive Cooling policy is used. The Thermal Events are notified to the OSPM by Thermal Change Notifications.

We can check which power states are supported by using the

*!pocaps*extension:The power states are stored within an enumeration called _SYSTEM_POWER_STATE.

**Additional Reading:**Thermal Management

**System Power States (Windows)**## Wednesday, 2 July 2014

### Using !kuser to find _KUSER_SHARED_DATA

The _KUSER_SHARED_DATA structure contains some interesting information related to the currently logged on user, we can obtain the address of this data structure by using the

Using the address with the _KUSER_SHARED_DATA will provide the following (omitted structure):

There is some debugging bit fields within this structure, so you can check what debugging features have been enabled for that user. It also contains some basic system information.

The System Call Dispatcher on x86

struct KUSER_SHARED_DATA

*!kuser*extension in WinDbg. Most of the fields aren't officially documented from what I can find, but you should be easily be able to work out what they mean from their names.Using the address with the _KUSER_SHARED_DATA will provide the following (omitted structure):

There is some debugging bit fields within this structure, so you can check what debugging features have been enabled for that user. It also contains some basic system information.

**Additional Reading:**The System Call Dispatcher on x86

struct KUSER_SHARED_DATA

## Friday, 27 June 2014

### WinDbg Cheat Sheet

I've created a comprehensive and complete WinDbg cheat sheet of the most general and useful extensions/commands which you'll be using regularly. I've added a few data structures to the list too. The list is organised by category, according to the different areas of debugging such as Memory or I/O.

Download Link (OneDrive) - https://onedrive.live.com/?cid=7101A9E8FE03DB78&id=7101A9E8FE03DB78!105

If there are any suggestions or corrections to be made, then please leave a comment in the comments section. Additionally, I've been attempting to convert my blog posts into a .DOC format which can be printed, unfortunately I haven't added any images to conserve space and ink. However, I have tried to construct the blog posts so you know which row or column to check; dd commands with the IAT/EAT post for example.

Download Link (OneDrive) - https://onedrive.live.com/?cid=7101A9E8FE03DB78&id=7101A9E8FE03DB78!105

If there are any suggestions or corrections to be made, then please leave a comment in the comments section. Additionally, I've been attempting to convert my blog posts into a .DOC format which can be printed, unfortunately I haven't added any images to conserve space and ink. However, I have tried to construct the blog posts so you know which row or column to check; dd commands with the IAT/EAT post for example.

## Wednesday, 18 June 2014

### List of Reverse Engineering and Debugging Tools

I may have created a small list of tools before, however, I would like to expand this list and provide some better descriptions for each of the tools listed. These tools are either completely free or have a limited free version which provides enough functionality for those like myself, who aren't professional security researchers, escalation engineers or get paid for doing reverse engineering/debugging. These tools can and are used by professionals and enthusiasts alike. If you have any recommendations then please add a link to the comments section.

This tool is my most favorite, it provides complete functionality for enthusiasts and is for free. There is a wide range of extension and commands for viewing data structures, memory addresses and call stacks. It can be used for both reverse engineering and debugging BSODs (Blue Screens of Death).

There is good documentation for WinDbg for finding hidden rootkits, examining data structures and looking at raw memory. Most of this information has been used in my blog for writing tutorials and adding my own information to. It can be used for static analysis and real-time analysis.

Link - Windows Driver Kit (WDK) and Debugging Tools for Windows (WinDbg)

OllyDbg is a great tool for reverse engineering user-mode programs. This is a another standard tool if you wish to examine malware or would like to learn the PE structure. This tool is for free, and again is there is great documentation for learning how to use it. Please check the Blogroll section for such blogs.

The data structure being viewed is the _PEB data structure, which is stored at offset 0x30 in the FS register for x86 systems. It is primarily used for static analysis.

Link - OllyDbg v.1.10

Link - IDA: About

This tool is great for displaying information about a specific binary file

I could only find the program hosted on Softpedia, but I'm sure that there wasn't any other programs bundled with the installation package.

Link - Analyze It! Free Download (Softpedia)

This is tool provides the same features as the other program, but with a simpler and cleaner UI and is easier to use in my opinion. It also has VirusTotal integration.

Link - PeStudio

Twitter -@ochsenmeier (Developer + Updates)

**WinDbg****- Reverse Engineering/Debugging**This tool is my most favorite, it provides complete functionality for enthusiasts and is for free. There is a wide range of extension and commands for viewing data structures, memory addresses and call stacks. It can be used for both reverse engineering and debugging BSODs (Blue Screens of Death).

There is good documentation for WinDbg for finding hidden rootkits, examining data structures and looking at raw memory. Most of this information has been used in my blog for writing tutorials and adding my own information to. It can be used for static analysis and real-time analysis.

Link - Windows Driver Kit (WDK) and Debugging Tools for Windows (WinDbg)

**OllyDbg - Reverse Engineering (User-Mode)**OllyDbg is a great tool for reverse engineering user-mode programs. This is a another standard tool if you wish to examine malware or would like to learn the PE structure. This tool is for free, and again is there is great documentation for learning how to use it. Please check the Blogroll section for such blogs.

The data structure being viewed is the _PEB data structure, which is stored at offset 0x30 in the FS register for x86 systems. It is primarily used for static analysis.

Link - OllyDbg v.1.10

**IDA Pro - Free Version****This tool is used for reverse engineering, and widely used by professionals to my knowledge. This is a very powerful tool, and be used to examine libraries in the IAT and EAT, look at strings stored in memory and assembly instructions. There are tutorials available on their website.**Link - IDA: About

**Analyze It!**This tool is great for displaying information about a specific binary file

**(static analysis).**I could only find the program hosted on Softpedia, but I'm sure that there wasn't any other programs bundled with the installation package.

Link - Analyze It! Free Download (Softpedia)

**PeStudio**This is tool provides the same features as the other program, but with a simpler and cleaner UI and is easier to use in my opinion. It also has VirusTotal integration.

Link - PeStudio

Twitter -

**Hook Analyzer**

The program enables you to hook to a certain active process, and then pull information from that process. It only works with Ring 3 (User-Mode) processes to my knowledge.

**PE Bear**

PE Bear is another static analysis tool for examining PE files, you can view file signatures and view packers which have been used.

Link -PE Bear Blog

**WinHex**

WinHex can be used for examining the hexadecimal format of files.

**Process Explorer**

Process Explorer is a Microsoft produced tool, which can be used for finding general information about active processes. It has Virus Total integration.

## Sunday, 15 June 2014

### Computational Number Theory - Pseudo Random Numbers

Computers are increasingly being used to solve mathematical problems, and are becoming more prominent in solving problems in Number Theory and Graph Theory, as well as, fields of Physics and Biology. However, computers have been used to create seemingly random numbers for either games or security purposes; these seemingly random numbers are called Pseudo-Random. They may seem random but in fact they aren't random at all.

To illustrate the difference between a true random number and a pseudo random number, look a look at the two images I've taken from Bo Allen's blog:

The difference is very obvious and thus highlights the key differences between a true random generator and a pseudo random number generator. A pseudo random number generator uses a mathematical algorithm, which is able to produce seemingly random numbers. A true random number generator uses methods which can't be predicted, and therefore are truly random. The randomness of numbers is important for encryption purposes and cryptography.

The true random number generators are hardware based, and most use the physics of Quantum Mechanics and it's probabilistic nature, like the quantization of electromagnetism which lead to discovery of photons and the Photoelectric effect. A pseudo random generator uses a software based mathematical algorithm to generate these random numbers.

A list of random number generators can be found here.

To illustrate the difference between a true random number and a pseudo random number, look a look at the two images I've taken from Bo Allen's blog:

True Random Number |

Pseudo Random Number |

The true random number generators are hardware based, and most use the physics of Quantum Mechanics and it's probabilistic nature, like the quantization of electromagnetism which lead to discovery of photons and the Photoelectric effect. A pseudo random generator uses a software based mathematical algorithm to generate these random numbers.

A list of random number generators can be found here.

Subscribe to:
Posts (Atom)
