Saturday 26 April 2014

Process Directory Table Base and CR3 with Stop 0x101

This is a very simple error, and be can useful in providing a hint at which point the crash may have occurred. This has been explained by Scott Noone on this blog, but I wanted to write my own blog post about it and provide the data structure which he didn't mention. The error was found by Patrick in a Stop 0x101 bugcheck, and perfectly matches the context of the crash.

Looking at Parameter 4, we can see the Processor Index Number which has become hung. This is where the error message is located too.


The highlighted address is the physical address stored within the CR3 Register.


Using the !process extension on the same Processor Number Index, we can check the DirBase field to find the mismatch within the two address indicated in the error message. The DirBase is a physical address of the Process Directory Table Base.


The DirBase field is the field within structure formatted with !process, which contains the address of the Process Directory Table Base for the current process, and thus if the two addresses don't match, then WinDbg will produce that error string. It tends to be caused when a crash occurs during a context switch. You can find the same field under the _KPROCESS data structure:

 The Process Directory Table Base is private to each Process Address Space and is used with conjunction to the TLB Cache and TLB Flushing. It's all the virtual address pages which correspond to that process, and thus when a Context Switch occurs, then the Control Register can be changed to the address of the process and all the entries within the TLB Cache are flushed. Afterwards, when the new addresses have been loaded, each page translation will result in a complete page walk until all the TLB Cache Entries have been rebuilt. This is a expensive process, and thus some processor architectures will tag entries corresponding to certain processes, and then only flush the corresponding tags.

References:

Process directory table base doesn't match CR3
Translation Lookside Buffer

Original Thread (Synsative) - BSOD(A clock interrupt was not recieved on a secondary processor...)





Monday 21 April 2014

Introduction to Detecting Anti-Debugging Techniques

Malicious Software is able to detect if it's running within a debugging environment or a debugger has been attached to the process, and thus will not generate of it's malicious behaviors in order to avoid detection from the security analyst or whoever is attempting to debug the process. In this article, I'm going to describe some of the common anti-debugging techniques which are used to detect the presence of a debugger.

 NtGlobalFlag:

The NtGlobalFlag is located within the Process Environment Block (PEB) at offset 0x68 on x86 Windows, and at offset 0xBC on x64 Windows.

Windows 7 SP1 x86



The default value is always 0, and doesn't change when a debugger is attached to the process. There are several methods in which the NtGlobalFlag can be changed to detect the presence of a debugger. The NtGlobalFlag contains many flags which affect the running of a process.

The most common flags which are set with NtGlobalFlag when a debugger creates a process, is the heap checking flags:

FLG_HEAP_ENABLE_TAIL_CHECK (0x10)
FLG_HEAP_ENABLE_FREE_CHECK (0x20)
FLG_HEAP_VALIDATE_PARAMETERS (0x40)

I've spoken about the purpose of these flags in a previous blog post which can be found here. These flags can be checked to detect the presence of a debugger. The general code from CodeProject, for checking the above flags:
unsigned long NtGlobalFlags = 0;

__asm {

    mov eax, fs:[30h]
    mov eax, [eax + 68h]
    mov NtGlobalFlags, eax
}


if(NtGlobalFlags & 0x70)
// 0x70 =  FLG_HEAP_ENABLE_TAIL_CHECK |
//         FLG_HEAP_ENABLE_FREE_CHECK |
//         FLG_HEAP_VALIDATE_PARAMETERS
{
    // Debugger is present
    MessageBox(NULL, TEXT("Please close your debugging " +
               "application and restart the program"),
               TEXT("Debugger Found!"), 0);
    ExitProcess(0);
}
// Normal execution
IsDebuggerPresent():

The IsDebuggerPresent() is a Kernel32 function which will return the Boolean value of True, if a debugger is attached to the process. It can be found by checking the IAT.


It can check the BeingDebugged field of the PEB:

char IsDbgPresent = 0;
__asm {
     mov eax, fs:[30h]
     mov al, [eax + 2h]
     mov IsDbgPresent, al
}

if(IsDbgPresent)
{
    MessageBox(NULL, TEXT("Please close your debugging " +
               "application and restart the program"),
               TEXT("Debugger Found!"), 0);
    ExitProcess(0);
}
// Normal Execution
The CheckRemoteDebuggerPresent() is a similar function, and can be detected with the same method.

NtSetInformationThread() - Thread Hiding:

The NtSetInformationThread() function has a hidden undocumented parameter called ThreadHideFromDebugger (0x11), which can be used to prevent any debugging events being sent to the debugger. Debugging Events are events which will notify the debugger, these can be the creation of new threads; generation of an exception; loading and unloading of DLLs and creating child processes.

You can check if this function is imported in the IAT. PeStudio or a similar program like PeBear may check for this function.

Execution Timing:

This is a simple idea and is implies that the execution time when be slightly more with the presence of the debugger. This technique measures the execution time, and if slightly longer than usual, can imply the use of a debugger. The common instructions include:
  • RDTSC, RDPMC and RDMSR instructions.
  • GetTickCount(), GetLocalTime() and GetSystemTime() are all functions within the Kernel32 library.
Again, you can check if these functions are imported within the IAT.

Software Breakpoint Detection:

The instruction 0xCC - INT 3 is used  to stop the execution of the debugged process and then pass the control to the debugger. The instruction is saved before the implementation of the breakpoint. Any comparison instructions (CMP, CMPXCHG) which use this instruction as a operand are considered as a anti-debugging technique.

Friday 18 April 2014

Debugging LPCs with WinDbg

LPCs or Local Inter-Process Communication calls are used to communicate between two User-Mode NT components, or between a User-Mode component and a Kernel-Mode Component. I believe there may be some bugchecks related to LPCs or at least problems you may potentially run into when working with LPCs if your a software engineer.

The User-Mode to Kernel-Mode communication tends to be related to security, and the User-Mode components tends to be related to creating logon sessions for the user. The terms Client and Server are used here, and this tends to refer to a different thread or different process. It depends on who created the port and who is receiving the messages. LPCs build upon the concept of IPC (Inter-Process Communication):

Methods of IPC:

The methods are usually some form of synchronization like a Semaphore, or a shared object such as a File object or Memory-Mapped File. A comprehensive list can be found on Wikipedia.

Port Creation and Port API:

With Windows Vista onwards, the LPCs have been changed to ALPCs but as far as I'm aware they still have the same structures and can still be debugged in the same way. I've taken a list of the APIs from the MSDN blog to save writing the same information:


The messages are less than 256 bytes according to Microsoft. The messages (LPC/ALPC) are sent between the client and server. Each named port has a Security Descriptor and is able to check if it wishes to accept a connection request from a client by checking the CLIENT_ID.


Once the Server has successfully created a named connection port with NtCreatePort, then a Client may wish to establish a connection with the connection port, whereby the Server may check the CLIENT_ID, and if it is accepted (NtAcceptConnectPort) then two new ports will be created. These ports are the Server Communication Port and the Client Communication Port. A handle will be created to the Server Communication Port and given to the Server, and a handle will be created for the Client Communication Port and given to the Client, these ports are used to send and receive messages. The Server Communication Port can terminate the connection.

Now let's examine the Port Object data structure which is used to represent a type of port with server process and owning process. Using the _LPCP_PORT_OBJECT which can we can view using WinDbg and a Kernel Memory Dump. This is allocated from paged pool.

The ConnectionPort is a pointer to a similar data structure which is used to represent the Server Connection Port, and the ConnectedPort is used to represent the Server Communication Port.

The ClientThread is the Client's thread, and the ServerProcess is the Server's process. The LpcReplyChainHead is a doubly linked list of all the threads which are currently waiting for a reply from a sent message to that particular communication port.

The MsgQueue contains another data structure and a few additional fields of interest:


The Sempahore is used as a signal to show that messages are waiting within the doubly linked list which is the RecieveHead field.

The ReceiveHead as stated before is a doubly linked list containing all the messages which need to be dequeued by the server.

The NonPagedPortQueue is related to the Client Communication Port and is used to track any lost replies from the Server. The fields seem to similar to the general port queue.


The next important data structure is the _LPCP_MESSAGE structure which is allocated with paged pool, and used to track message related information between the Server and Client. This information includes Message Type, Message ID and the ClientID. We can also search through paged pool using the pool tag which is LpcM. ALPCs may use the _KALPC_MESSAGE data structure instead which contains similar information.



Here's the data structure for the message:


The SenderPort field is the Client Communication Port. It should have a Port Object data structure associated with it.

The RepliedToThread is the Client Thread which has been replied to.  The Entry field is the entry within the doubly linked list associated with the Message Queue.

The Request field is a copy of message buffer passed as a parameter with the NtRequestWaitReplyPort. The _PORT_MESSAGE data structure contains a few additional fields.


The MessageId field is a unique message identifier. The CallbackId is the the Sender ID or related to the Sender. The ClientViewSize is the size of the section created by the sender, when using Memory Mapped Files, this applies when using the NtCreateSection/CreateFileMapping and thus _PORT_VIEW data structure.

The DataLength and the TotalLength fields are associated with the length of the data within the message and the header, and the TotalLength includes the size of the _PORT_MESSAGE structure.

We can check the _EPROCESS and _ETHREAD fields for information related to LPCs.

Let's begin with the _EPROCESS data structure which contains three LPC ports, which each have their own function within the Windows operating system:

The DebugPort is used for sending debugging messages (User-Mode), the ExceptionPort is used with CsrCreateProcess and used to create a new process with a connection with the debugging port. _LPC_EXCEPTION message is sent using this port when a thread doesn't catch a exception. The SecurityPort is used by the lasass.exe process for security purposes.

Using the -y switch to set some search query parameter, we need to search the _ETHREAD data structure for some LPC fields. On Windows Vista and later systems, some of the fields seems to have been removed. Windows XP will have the original LPC fields.

AlpcMessageId is the message sent to the Server while the Client Thread waits for a response. The AlpcMessage is a pointer to the message data structure seen earlier or I assume it to be. The AlpcWaitListEntry is a list of threads waiting for a reply from the Server communication or connection port depends upon the situation. The AlpcWaitSempahore causes a Client Thread to wait while the Server processes the message received.

The original Windows XP fields are described in the table below:

WinDbg Debugger Extensions:

The ALPC extensions do not seem to be documented within the WinDbg documentation, but the !lpc debugger extensions are documented. !lpc only applies to Windows XP and earlier. Windows Vista onwards will need to use the ALPC extensions which are limited in comparison.

I'm using the !alpc version of the debugger extension, but the !lpc extension seems to have more functionality such as the PoolSearch option, but you could try it with the !poolfind extension and the pooltag.

I've just chosen a random process, and then passed it as a parameter to the !alpc /lpp debugger extension to view which ports the process is connected to, and which ports were created by the process.

The address next to the process name appears to be the Process Address, and the first address (85eb9378) seems to be the Client Communication Port address, and the second address seems to be the address of the ApiPort. The !alpc /p extension helps to clarify this information. The 38 on the last line indicates the number of messages within the pending queue.

We can view message information with the !alpc /m extension:

The !lpc debugger extension documentation can be found in WinDbg, the !alpc extensions didn't have information, and therefore my assumptions on the fields were through investigation and knowledge from Microsoft related resources which will be added to the References section.

Common Issues:

By doing some research, I've manged to find some information on the common issues related to LPCs.
  • Servers aren't able to send messages for Clients which are waiting for a LPC Message.
  • There is no Timeout for LPC Wait APIs (this may have changed).
  • If the Server Process is terminated, then the Client Threads aren't notified unless there were Client Threads waiting for a reply from that Server Process.
  • The Server replied to the wrong Client, and the Server threads are completely deadlocked and thus can't process any more requests from Clients to a particular port.
You can find information related to LPCs/ALPCs by examining the stack function calls, and then using the debugger extensions to work backwards to find the Server Process which may be causing problems.

References:

LPC Communication
LPC (Local procedure calls) Part 1 architecture
LPC part 2 Kernel Debugger Extensions

Tuesday 15 April 2014

Understanding Memory Probes - A Quick Introduction

You may notice with Stop 0x50, there is the mentioning of something called the memory probe, the memory probe is a type of function which is used to check that a buffer (chunk of virtual memory) resides within user-mode and is correctly aligned to a boundary. I've spoken about memory alignment before in a previous blog post, however, I will mention the topic again in post.

Memory Alignment is very useful for performance in processors, if data is aligned to a certain boundary, then larger chunks of data can be accessed much more efficiently rather than lots of small accesses with a large chunk of data. Data misalignment is a common problem with debugging, especially with x64 processors.

We can check for alignment issues by checking the EFLAGS register and AC flag, which when set to 1, will mean that data being accessed must be aligned to the correct boundary otherwise you'll experience access violations and potential BSODs.On the other hand, using malloc or new should always create aligned data accesses.

Supposedly, the interrupt handler is assigned the 17h vector number within the IDT table.

Now, lets move onto the concept of a try-except block, and the Probe. The Memory Probe has to reside within the try-except block to be able to raise the appropriate exception code to the operating system. The two versions of Memory Probes are the ProbeForRead and ProbeForWrite. Memory Probes can't be used within the Kernel Mode Address Range otherwise it will lead to an exception.

The try-except block is a block of code which tested to see if it will run properly, and if it doesn't then a exception handler will be invoked.


I've created a very quick template for a try-except block which will catch all exceptions regardless of their type, in real programs you'll most likely have specific handlers for exception errors. Typically, inside the catch block, the code will producing a error message to the user. The try block is the code we're attempting to execute with no problems.

The ProbeForRead function takes three parameters: the starting address of the buffer, the length of the buffer and the required alignment.

Memory Probes are used within the win32k.sys subsystem (Kernel-Mode) when dealing with System Calls from User-Mode and storing certain libraries within User-Mode. The Win32k.sys has it's own SSDT called the Shadow SSDT. This article may also be useful for information on SSDT Hooking.

Friday 11 April 2014

Debugging Stop 0x50 - A Few Little Clues

This is the first time I've debugged in a while, and the example is from a dump file which my friend on Sysnative Patrick has been debugging, but I wanted to write another debugging post which explained a few additional clues you can check with Stop 0x50's.

The problem which I find with some bugchecks, is that their names can be a little generic and not really pinpoint the exact problem. Yes, they give a idea of the problem but do not give any major clues; a paged pool address could have been referenced at the wrong IRQL Level which would likely lead to a Stop 0x50 or a Stop 0xA. Let's take a look at few of the little clues available within the dump file.

Within the description there is two clues which point to the type of possible problem. A invalid system address was being referenced, which is quite obvious, since it must have been a Kernel-Mode address otherwise we wouldn't have gotten the bugcheck and the address has been freed. Of course, the address could have been paged out onto a page file, and then the corruptions within the file system may have lead to that address being corrupted too.

Now, a good thing next would be to check the CR2 and this if that matches the address being referenced within Arg 1. The CR2 register or Control Register 2, is the register which contains the Page Fault Linear Address or the last address which the program attempted to access. Linear Address is pretty much the Virtual Address or the Logical Address with the segment register added, which in this case is DS (Data Segment).

The CR2 register being to be pointing to the referenced address within Arg 1. We can investigate further and gather some small but important clues by gathering a stack trace and then viewing the registers stored within a context switch upon a page fault.

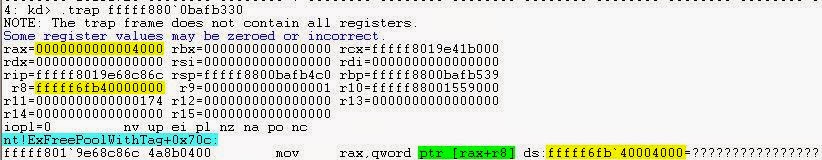

Using the .trap command on the trap frame address, we can view the registers and referenced addresses and the last called function which caused the page fault. Note a trap frame is the saving of a register state when an exception occurs, which is what a page fault is technically considered, it would only lead to problems if the exception couldn't be handled by the page fault handler within MmAccessFault.


The concatenation of the two registers provides the address within the ds register and the referenced address within CR2 and Arg 1 of the bugcheck description. We have found the referenced address. Going back to the bugcheck description, notice "pointing to freed memory", the memory address has been freed wrongly with the nt!ExFreePoolWithTag function and paged out back onto the disk when it shouldn't have since this a non-paged pool memory address.

We can even check the IRQL Level with the !irql extension, and see if the problem could have been due to IRQL Level problems, since only non-paged pool can be accessed and any page faults are illegal. Since the IRQL Level was 0, then the possibility of the IRQL Level is moot as page faults are legal.

 In my opinion, the problem is most likely to point to software issues. It's been a while since I last debugged, so it was nice to be able to write a blog post regarding the subject again.

The full thread is here with Patrick's analysis.


Tuesday 8 April 2014

Automata Theory - Finite State Automata and Regular Languages

Automata are abstract models of automatic machines which tend to have a very limited number of states they can be in. We use Automata without even knowing it, the most common example I can think of is the use of compilers with programming languages. In this post I'm going to be looking at Deterministic and Non-Deterministic Finite State Automata, and Regular Languages.

Firstly, I believe it would be best to give an introduction to the concept of Formal Languages which are processed by these abstract models of computation which represent real life computers in our modern age.

All the Formal Languages are defined within the Chomsky Hierarchy, which defines which languages can be computed by which machines. It takes the following format.


The hierarchy gives the types of languages classes, and what machines they can be computed by. For example, Finite Automata can only recognise Regular Languages and not Context-Free Languages. So what is the formal definition of a Formal Language?

Regular Languages and Regular Grammar:

A formal language is a set of strings over a given alphabet with some form of rules applied to this strings. I'll introduce the terms of strings and alphabets shortly. These rules may be regular grammar which forms the basis of regular languages, which are recongised by finite automata machines. In mathematical terms, the formal language can be defined as follows:

$$L = \Sigma \subset \Sigma^*$$

A language is a set of all the possible words or strings which can be generated from that finite alphabet. Since I will be mostly looking Finite Automata, then a I mention briefly what a Regular Language is.

A Regular Language is a language which is constrained by the rules of regular grammar; all finite languages are regular, and all languages which can be accepted by a finite automation are regular, since finite automata only has a finite amount of memory, it isn't able to recognise a set of strings which has a arbitrary number of 0's or 1's.

A classic example of a regular language which can't be accepted by finite automata is:

$$\{0^n1^n | n \ge 0\}$$

Regular Languages are defined by regular expressions, regular expressions are said to be a sequence of characters which forms some kind of search pattern, for example a character can have literal meaning and a special meaning (forming a metacharacter). The pattern is a method of giving a set of strings some form of meaning and purpose. A good example from Wikipedia is, a literal character a can be used to denote the a set only containing the letter a, which would mean this: $$\Sigma = \{a\}$$

Let's give a formal definition for the rules of a regular grammar which is used to define a regular language.

A grammar tends to form a four tuple of:

$$G = (N, T, R, s)$$

The N represents a set of non-terminal symbols and the T represents a set of terminal symbols, these symbols are used to produce the production rules, which in turn are used to produce the strings accepted by the machines. Remember these are abstract representations of how computers work and how compilers can be designed. R is the production rules, and s is the start symbol.

The sets of both Non-Terminal and Terminal symbols is disjoint, and their intersection is the empty set. The Terminal Symbols can't be converted into a different character, and thus the reason why they're called Terminal Symbols. The Non-Terminal Symbols can be converted into different characters. For example, let's say that the N = {x} and T = {a}, this is a very small set but the production rules will easier to understand with less symbols.

The production rules would be defined in the following format:

$$x \rightarrow xa$$
$$x \rightarrow a$$

The production rules could be chosen a k number of times, which would produce:

$$xa^ka$$

Deterministic and Non-Deterministic Finite State Automata:

A Deterministic Finite State Machine (DFSM) is said to be deterministic if for a given state and input, the next state can be determined. This is what most of our computers are, and hence the reason why the P=NP problem hasn't been solved, NP algorithms require a non-deterministic Turing Machine. A FSM is typically defined as a tuple:

 $$(X, Q, q, F, \sigma)$$

X = Alphabet (Inputs)
Q = Finite Set of States
q = Initial State (member of Q)
F = Final Accepting State (Proper Subset of Q)


DFSMs have a finite number of states, and their transition function is defined below:

$$\sigma: Q \centerdot X \rightarrow Q$$

The transition function shows that for a given state and a given input, which state the finite machine will move to. All FSMs have a starting state and a accepting final state. The only difference between a DFSM and a NDFSM (Non-Deterministic Finite State Machine) is the transition function used. The transition function for a NDFSM is defined below:

$$\sigma: Q \centerdot X \rightarrow P(Q)$$

With a Non-Deterministic Finite State Machine, then two states can be reached with the same input, this doesn't necessarily mean that two accepting states could be reached. With the case of one accepting state, then the machine will need process both of transition functions, and then accept the transition function which leads to a final accepting state. There is also no difference in terms of computing power between a DFSM and a NDFSM, since both machines can accept all regular languages.

The circle with a inner circle is the final accepting state, and is used with all FSM diagrams. Note that the labels on the edges represent the characters with the string being read by the machine.
